Continuous Lid Plugging System – Gluer

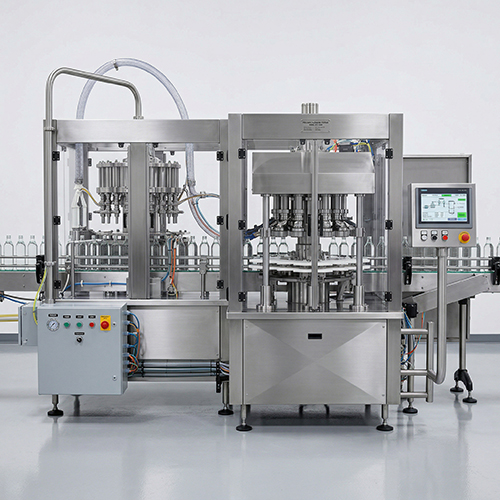

This system features a rotary lid plugging system with a glue applicator. A servo in-feed timing screw is utilized to transfer the container from the glue drum roller assembly into the star-wheel and guide assembly of the CLPS-G lidder. The glue roll drum features an external hot oil recirculating system and hot-melt glue reservoir.
The container travels through a dual-timing screw feed system to tilt the container forwards as it spins in the pocket of the timing screw. A fine bead of glue is applied to the inside diameter of the canister as it travels underneath the glue drum roller assembly.
A cap feeding system is integrated with the CLPS-G to provide a continuous flow of caps to the lidder to sustain the required throughput.
Specifications
- Stainless steel shafting, sheet (#3 finish) and structural tubing
- 4 1/2″ × 15′ table-top conveyor
- Stainless steel Imperial hardware
- Clear anodized aluminum
- Black oxide chain, pulleys and sprockets
- Dodge Tigear gear boxes and bearings
- SMC Pneumatics
- Clear polycarbonate guarding
- Plastic articulating foot pads
- Height adjustment kit with digital readout indicator
- THK linear guides
- White virgin Teflon timing screws
- Hand wheel and indicator for height adjustments (3.5″–9.5″ range)
Available Options
- Rotary cap feeder
- Conveyors (table-top, air, etc.)
- Coupon / leaflet inserters
- Stainless steel (non-wash-down) construction
- Elevator cap sorter feeder
- Ethernet and communication modules
- Electrical and control system upgrade
- Digital height and diameter adjust packages
- All domestic and international voltages to meet UL and CE requirements
- Cap detection with reject (fiber optic sensors and/or vision technology)
